Original price was: ₨ 245,000.₨ 235,000Current price is: ₨ 235,000.

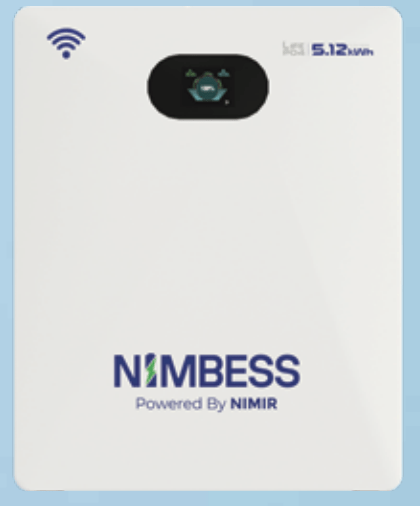

The Nimbess 5.12kWh Wall-Mounted LiFePO4 Battery is designed for residential and commercial energy storage applications. Built with advanced LiFePO4 technology, it delivers superior safety, long cycle life, and flexible installation options.
| Specification | Details |
|---|---|
| Product Model | ES-BOX12 (LCD) |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Cell Type | LiFePO4 (LFP) |
| Standard Charge Voltage | 56.8V |
| Discharge Cut-off Voltage | 44.8V |
| Maximum Discharge Current | 100A |
| Maximum Charging/Discharging Rate | 1C |
| Cycle Life | > 8,000 cycles (25°C ±2°C, 0.5C, 80% DOD @ 65% EOL) |
| Depth of Discharge (DOD) | 80% |
| Parallel Function | Supports up to 16 units in parallel |
| Communication Interfaces | RS485, CAN, USB/RS232 |
| Charge Temperature Range | 0°C to 55°C |
| Discharge Temperature Range | -20°C to 55°C |
| Installation Method | Wall Mounted / Floor Standing |
| Dimensions (W × H × D) | 480 × 600 × 150 mm |
| Net Weight | 50 kg |
| IP Rating | IP20 |
| Warranty | 5 Years (under warranty terms) |
| Functions | WiFi APP, Touchscreen, Breaker |
Monitor and manage your battery system remotely through:
The intelligent Battery Management System (BMS) supports simultaneous communication and is compatible with multiple inverter brands.
The battery integrates seamlessly with:
