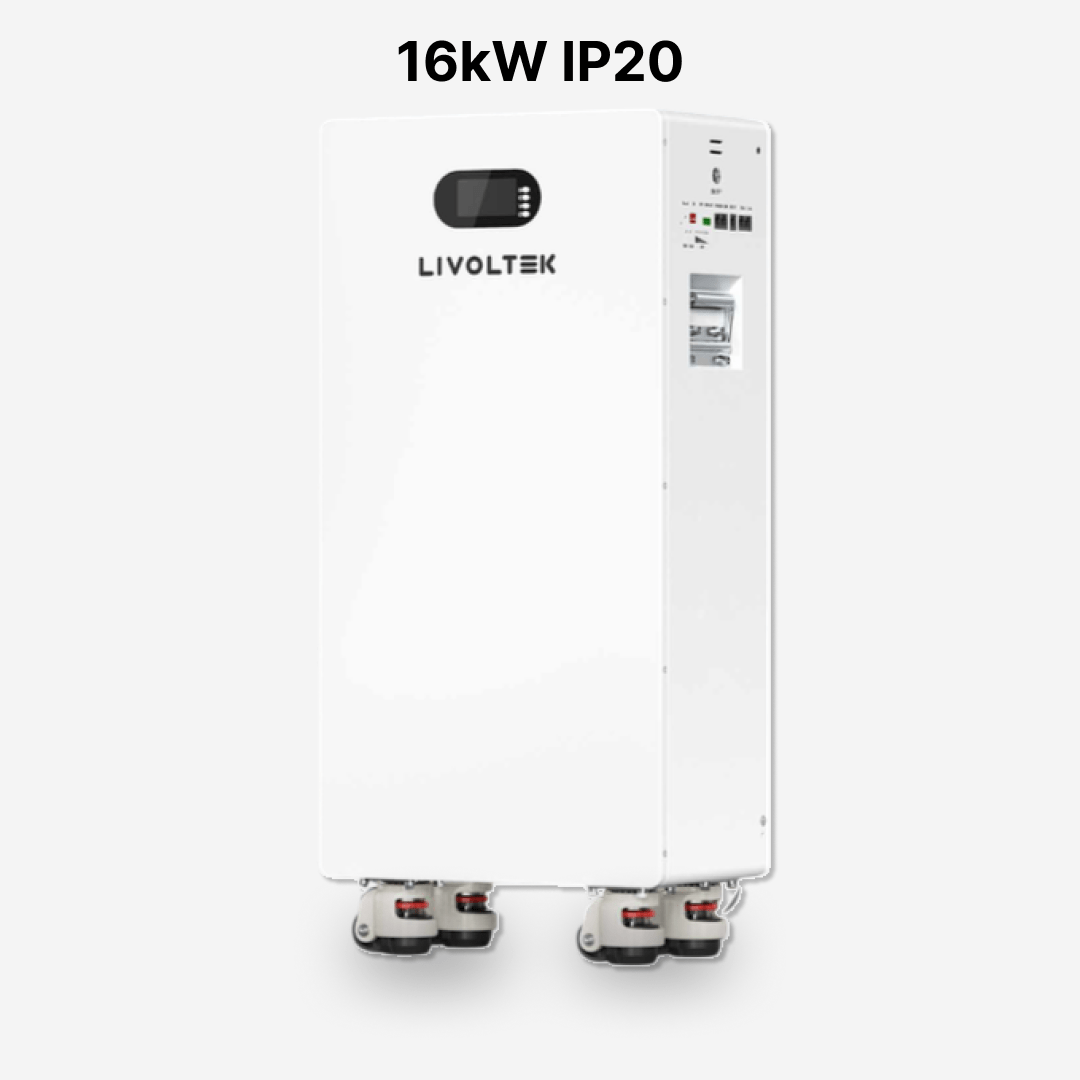

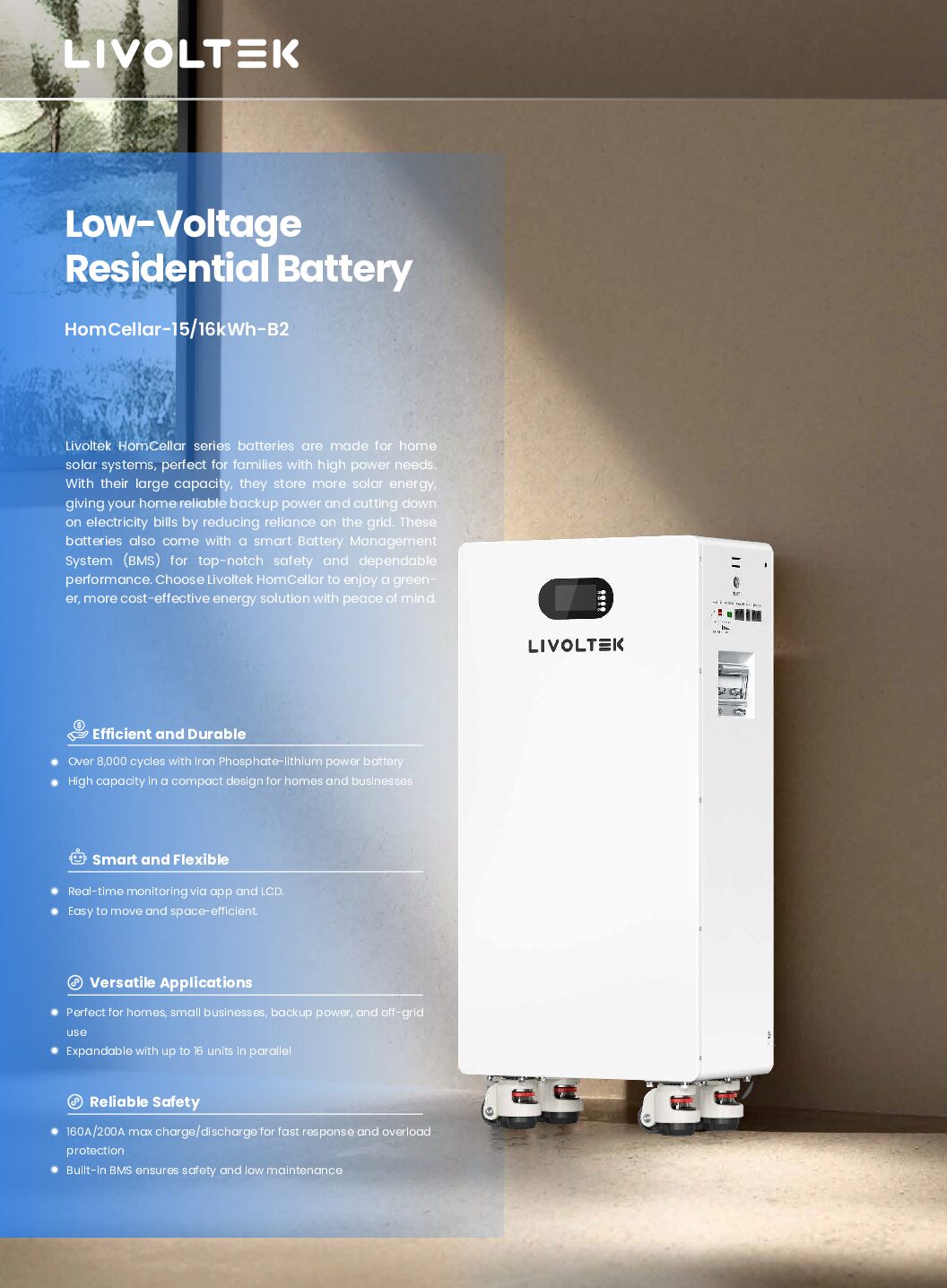

 Livoltek HomCellar-16-B2 – 16kWh Low-Voltage Lithium Battery

Livoltek HomCellar-16-B2 – 16kWh Low-Voltage Lithium Battery

Detailed Technical Specifications

General Overview

Brand: Livoltek

Model: HomCellar-16-B2

Battery Type: LiFePO₄ (LFP)

System Type: Low-Voltage Residential Battery

Energy & Capacity

Total Capacity: 16 kWh

Rated Capacity: 314 Ah

Nominal Voltage: 51.2 V

Voltage Range: 43.2 – 57.6 V

Depth of Discharge (DoD): 90%

Cell Configuration

Configuration: 1P16S

Battery Module: 51.2V, 314Ah, 16kWh

Charge & Discharge Parameters

Max Charge Current: 160 A

Max Discharge Current: 200 A

Cycle Life & Durability

Cycle Life: ≥6000 cycles

High efficiency & long lifespan

Smart Features

App monitoring + LCD display

Advanced BMS protection system

Scalability

Supports up to 16 batteries in parallel

Operating Conditions

Same as the 15kWh model

Designed for harsh environments

Physical Specifications

Dimensions: 415 × 883 × 234 mm

Weight: 110.5 kg

Design: Floor-standing with wheels

Cooling & Protection

Cooling: Natural

Ingress Protection: IP20

Communication

CAN / RS485
