Name: Inverex Power Wall (48V-5.32KWh) Lithium Battery | Solar Switch
Price: 278000 PKR
Availability: InStock

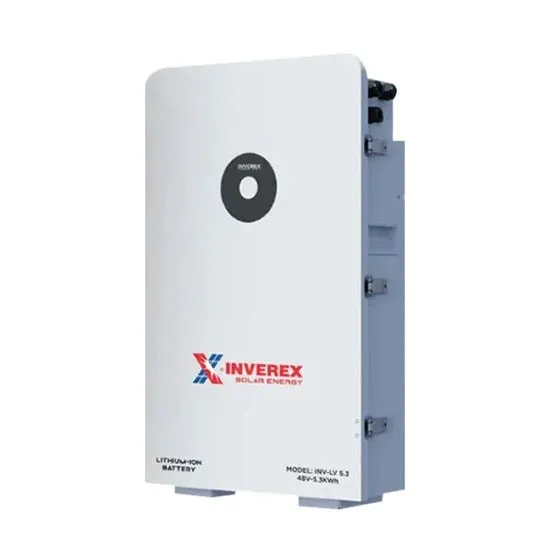

Inverex Power Wall (48V-5.32KWh) Lithium Battery

₨ 278,000

Description

Inverex Power Wall (48V-5.32KWh) Lithium Battery

Additional information

Model	INV-5.3
Main Parameter	LiFePO4
Battery Chemistry	LiFePO4
Capacity (Ah)	104
Scalability	Max. 32 pcs in Parallel (170 kWh)
Nominal Voltage (V)	51.2
Operating Voltage (V)	43.2 – 57.6
Nominal Energy (kWh)	5.32
Usable Energy (kWh)	4.79
Recommended Charge/Discharge Current	50
Max. Current (A)	100
Peak Current (A) (2 mins. @ 25°C)	150 (2 mins. @ 25°C)
Recommended Depth of Discharge	90% DOD, 0.5C/1C, 70% EOL
Dimension (W/H/D, mm)	450 x 320 x 135
Weight Approximate (kg)	45
Master LED Indicator	3 LED (working, alarming, protecting)
IP Rating of Enclosure	IP20
Operating Temperature	Charge: 0°C + 55°C / Discharge: -20°C + 55°C
Storage Temperature	0°C + 35°C
Humidity	90% RH Max.
Altitude	2000 m
Cycle Life	2000 cycles
Installation	Wall-Mounted, 19 inch Rack-mounted
Communication Port	CAN 2.0, RS485
Warranty Period	5 years
Energy Throughput	UN38.3, CE, IEC 62619
Certification	UN38.3, CE, IEC 626
