Original price was: ₨ 397,000.₨ 379,000Current price is: ₨ 379,000.

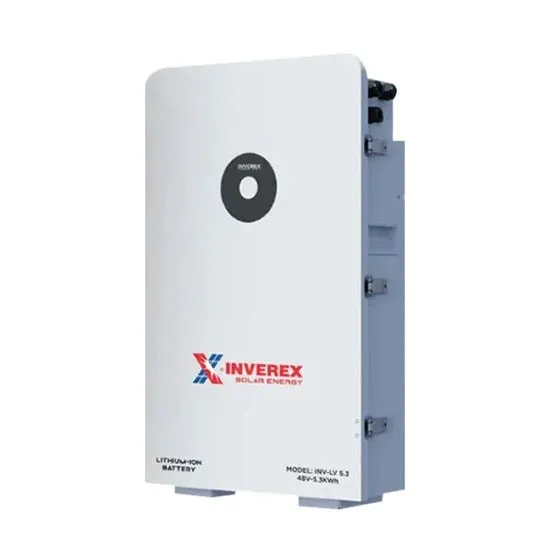

| Model | INV-5.3 |
|---|---|
| Main Parameter | LiFePO4 |
| Battery Chemistry | LiFePO4 |
| Capacity (Ah) | 104 |
| Scalability | Max. 32 pcs in Parallel (170 kWh) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 – 57.6 |
| Nominal Energy (kWh) | 5.32 |
| Usable Energy (kWh) | 4.79 |
| Recommended Charge/Discharge Current | 50 |
| Max. Current (A) | 100 |
| Peak Current (A) (2 mins. @ 25°C) | 150 (2 mins. @ 25°C) |
| Recommended Depth of Discharge | 90% DOD, 0.5C/1C, 70% EOL |
| Dimension (W/H/D, mm) | 450 x 320 x 135 |
| Weight Approximate (kg) | 45 |
| Master LED Indicator | 3 LED (working, alarming, protecting) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature | Charge: 0°C + 55°C / Discharge: -20°C + 55°C |
| Storage Temperature | 0°C + 35°C |
| Humidity | 90% RH Max. |
| Altitude | 2000 m |
| Cycle Life | 2000 cycles |
| Installation | Wall-Mounted, 19 inch Rack-mounted |
| Communication Port | CAN 2.0, RS485 |
| Warranty Period | 5 years |
| Energy Throughput | UN38.3, CE, IEC 62619 |
| Certification | UN38.3, CE, IEC 626 |
