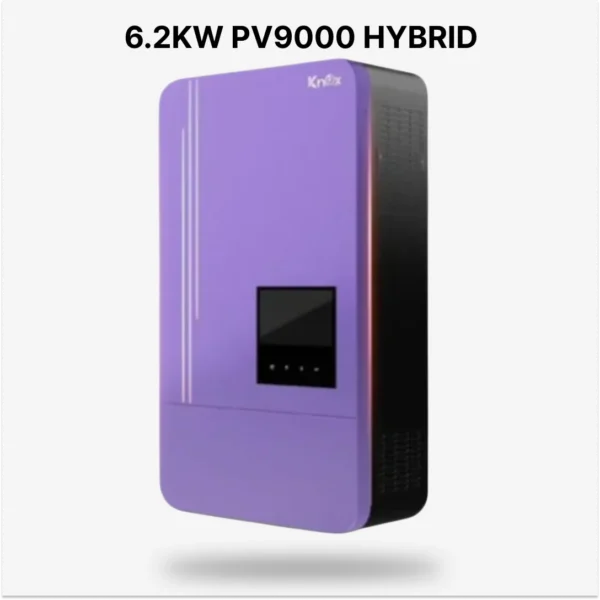

Konx Krypton 6.2KW PV9000 HYBRID Solar Inverter

Konx Krypton 6.2KW PV9000 HYBRID Solar Inverter

Original price was: ₨ 185,000.Current price is: ₨ 159,000.

Categories Hybrid Inverters, Inverters Brand: Knox

HURRY SALE ENDS

Days

Hours

Minutes

Description

General Specifications

Parameter	Specification
Phase	Single Phase
Rated Output Power	6200 W
Battery + PV Output Power	8000 W
Nominal DC Voltage	48 VDC
Maximum DC Voltage	500 VDC
Start-up Voltage	120 VDC
Initial Feeding Voltage	150 VDC
MPPT Voltage Range	120 VDC – 430 VDC
Number of MPPT Trackers	1
Max Input Current	27 A (Max 40 A)

PV Input (DC)

Parameter	Specification
Maximum PV Input Power	9000 W
Solar Charger Type	MPPT
Maximum Solar Charging Current	142 A

Battery & Charger

Parameter	Specification
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Maximum AC Charging Current	120 A
Maximum Charging Current	120 A

Battery Mode Output (AC)

Parameter	Specification
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)
Nominal Output Current	28.26 A
Power Factor	> 0.99
Output Waveform	Pure Sine Wave
Surge Power	12400 VA
Transfer Time	10 ms (PCs), 20 ms (Home Appliances)

Grid-Tie Operation & AC Input

Parameter	Specification
AC Start-up Voltage	120 – 140 VAC
Auto Restart Voltage	180 VAC
Acceptable Input Voltage Range	90 – 280 VAC or 170 – 280 VAC
Frequency Range	50 Hz / 60 Hz (Auto sensing)
Nominal Output Voltage	230 VAC

Efficiency

Parameter	Specification
Maximum Conversion Efficiency (DC/AC)	95%
Overall Efficiency (DC to AC)	93%
DC Voltage	12 VDC ± 5%, 100W

Physical & Environmental

Parameter	Specification
Dimensions (D x W x H)	138 x 320 x 550 mm
Net Weight	12 kg
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
Humidity	0 – 90% RH (Non-condensing)

Interface & Communication

USB
RS232
RS485
WiFi
Dry-contact

Certifications & Approvals

IEC 61682
Low Voltage Directive 2014/35/EU
IEC 62109-1
IEC 62109-2
IEC 61683
More certifications available upon request

Key Highlights

High surge power of 12.4 kVA
Pure sine wave output for sensitive electronics
Fast transfer time (10–20 ms) for seamless backup
Robust MPPT solar charging with wide voltage range
Multiple communication options for easy monitoring
Compact and lightweight design
Certified for safety and reliability

Brand

Knox
