Description

Specifications

• Brand: Growatt
• Model: X2 Pro 15kW
• Type: On-Grid (Three-Phase)
• Rated AC Output Power: 15,000W
• Max DC Input Voltage: 1100V
• Start-Up Voltage: ~200V
• MPPTs: 2 – 3 (Model dependent, independent tracking)
• Max Efficiency: 98.6%
• European Efficiency: ~98.2%
• Max DC Input Current: 26A per MPPT
• AC Output Voltage: 400V Three-Phase
• Frequency: 50Hz / 60Hz
• THDi: <3%
• Communication Ports: RS485 / WiFi / LAN / Optional 4G dongle
• Protection Features: DC reverse polarity, AC short circuit, surge protection, anti-islanding, ground fault monitoring
• Cooling: Smart Air Cooling
• Ingress Protection: IP65 (dustproof and water-resistant)
• Operating Temperature Range: -25°C to +60°C
• Dimensions: ~ 500 × 400 × 180 mm
• Weight: ~28 kg
• Warranty: 5 Years Standard (extendable up to 10 years)

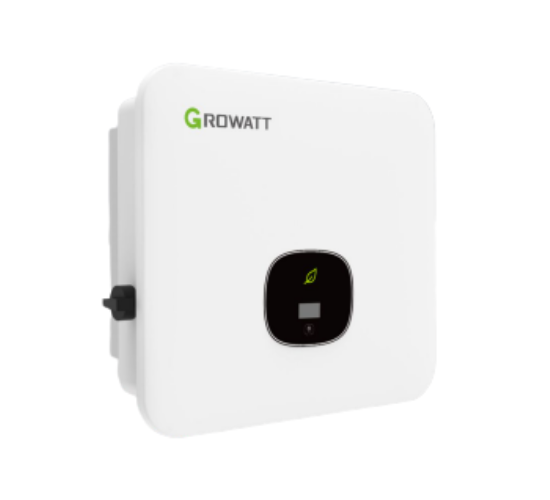

• Growatt 15kW X2 Pro OnGrid Inverter – Smart & Reliable Commercial Solar Solution

  The Growatt 15kW X2 Pro is a robust, high-efficiency on-grid inverter designed for medium to large-scale solar power plants. With dual/tri MPPT tracking, it provides flexibility in system design, allowing optimal solar harvesting from multiple panel orientations.

  Delivering up to 98.6% conversion efficiency, this inverter ensures maximum energy yield for businesses, schools, industries, and commercial setups in Pakistan. Its IP65-rated enclosure makes it suitable for both indoor and outdoor installations, with advanced cooling for stable operation in harsh climates.

  The smart monitoring system (via WiFi, LAN, or 4G dongle) provides real-time performance tracking, fault diagnostics, and remote management. Integrated safety features like anti-islanding, surge protection, and ground fault monitoring guarantee reliable and safe operation.

  Why Choose Growatt 15kW X2 Pro On-Grid Inverter?

  Growatt is a Tier-1 global inverter manufacturer, known for reliability, innovation, and affordability. The 15kW X2 Pro is net metering approved in Pakistan, making it the ideal solution for commercial buildings, factories, and institutions seeking higher ROI and long-term solar performance.
