Original price was: ₨ 520,000.₨ 464,000Current price is: ₨ 464,000.

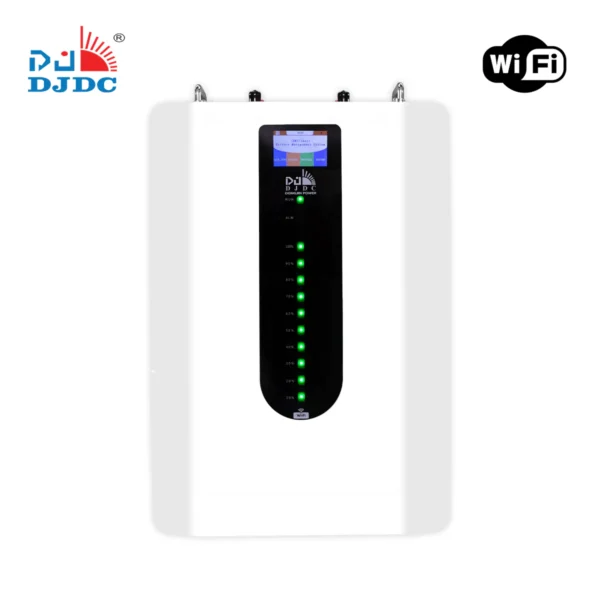

Maximize your energy storage with the Dongjin Wall-Mounted 51.2V 200Ah LiFePO4 Battery, offering an impressive 10240Wh capacity for large-scale solar and off-grid applications. This high-performance, wall-mounted battery combines a space-saving design with a 6000-cycle lifespan at 80% capacity, delivering exceptional durability and value. Its smart BMS supports WiFi, Bluetooth, RS232, RS485, and CAN communication, ensuring compatibility with top solar hybrid inverters. Monitor performance effortlessly with the touch LCD display, and rely on built-in protections for over-charge, over-discharge, and over-temperature. With fast charging and extreme heat tolerance up to +60°C, this battery is built for reliability in the toughest conditions. Power up with Dongjin’s advanced energy solution.
| Specification | Value |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy | 10240Wh |
| Cell Quantity | 16 Cells |
| Internal Resistance | ≤35mΩ |
| Parallel Communication Quantity | 10 Batteries |
| Full Charge Voltage | 58.4V |
| Full Discharge Voltage | 48V |
| Charging Passive Current Limit | 20Ah |
| Max. Charge Current | 200A |
| Max. Discharge Current | 200A |
| Communication | WiFi, Bluetooth, RS232, RS485, CAN |
| Display | Touch Screen LCD |
| Cycle Life | 6000 cycles @ 80% |
| Protection | BMS (Over-Charge, Over-Discharge, Over-Temperature) |
| IP Degree | IP32 |
| Standard Charge Method | 0.2C cc (Constant current) charge to FC, cv (Constant voltage FC) charge till charge current decline to <0.05C |
| Storage Temperature | 0-40°C |
| Charge Temperature Range | 0-45°C |
| Discharge Temperature Range | -20°C to 60°C |
| Dimensions (DxWxH) | 602 x 420 x 290 mm |
| Net Weight | 98 kg |
