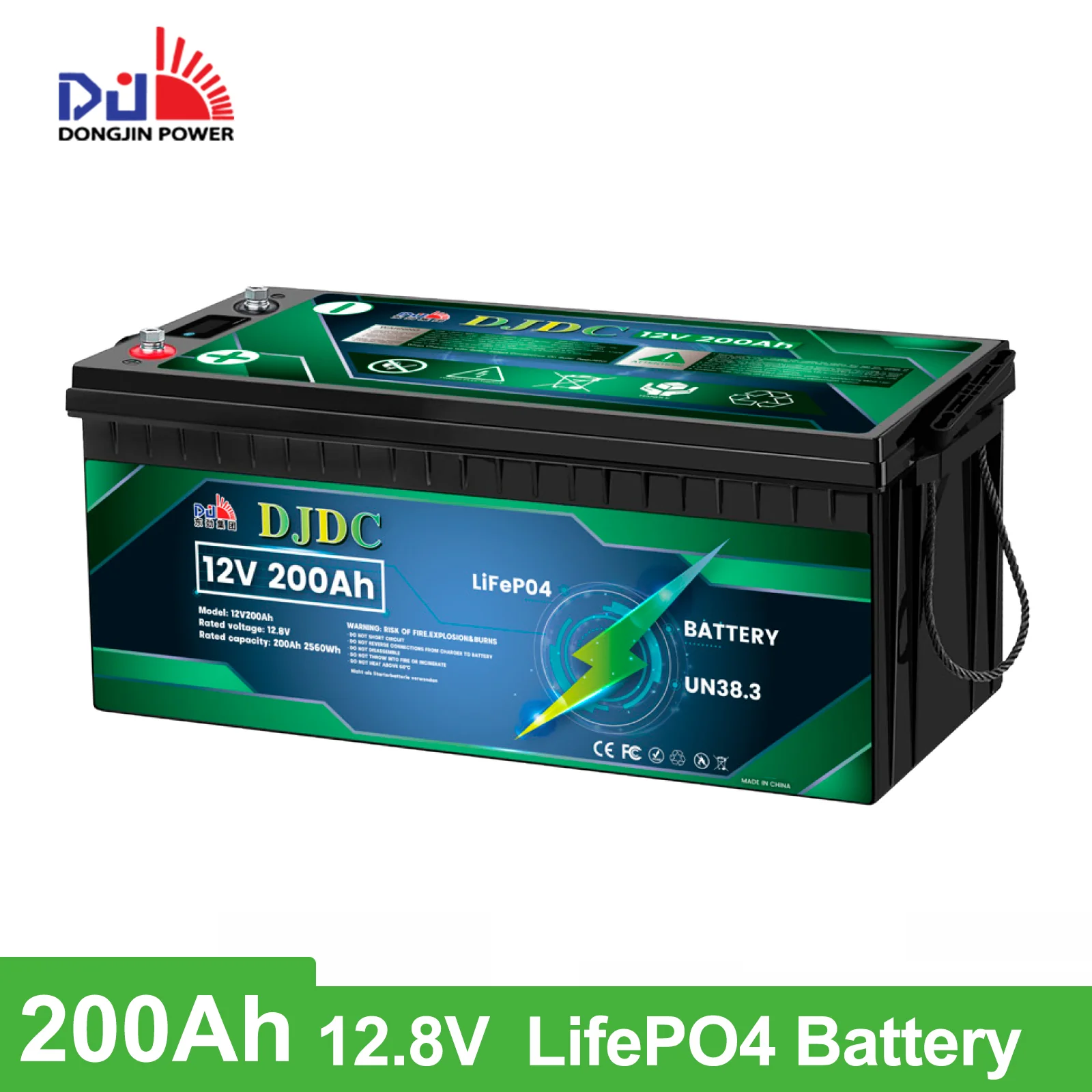

DJDC 12V 200Ah LiFePO4 Deep Cycle Battery
Reliable Power for Your Off-Grid Needs

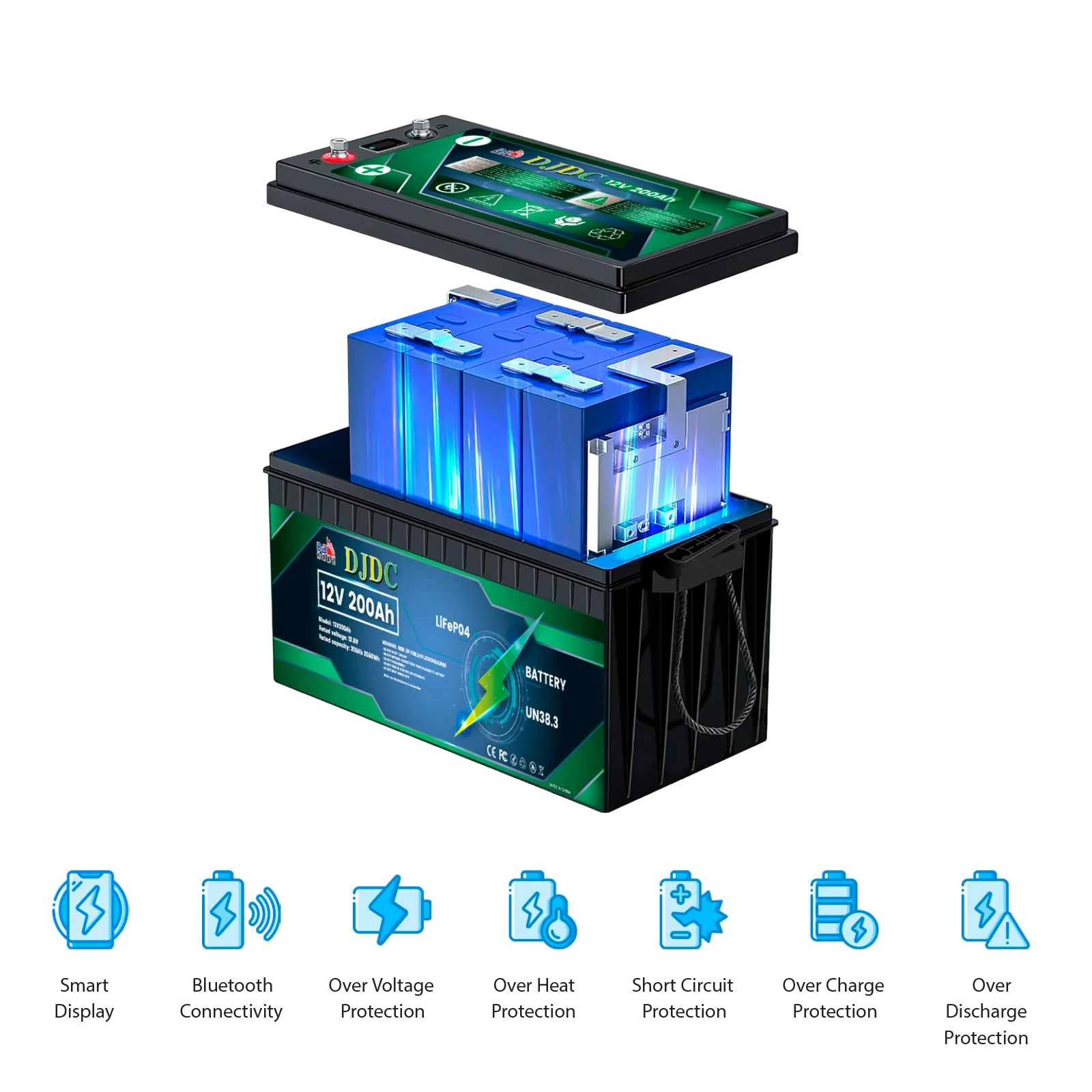

Upgrade your energy system with the DJDC 12V 200Ah LiFePO4 Battery, a compact and lightweight powerhouse designed for trolling motors, solar systems, RVs, kayaks, and more. Built with Grade-A prismatic cells and a 200A Smart BMS, this battery delivers long-lasting, safe, and efficient energy for all your adventures.
Key Features:
- High Capacity & Energy: 200Ah with 2560Wh energy output
- Compact & Lightweight: Just 21Kg – easy to install and carry
- Grade-A LiFePO4 Cells: Stable, safe, and long-lasting
- Smart BMS (200A): Protects against overcharge, discharge, temperature, and short circuits
- IP65 Waterproof Shell: Durable ABS+PC housing for harsh environments
- Fast Charging: Up to 50A max charge current
- Wide Usage: Ideal for RVs, trolling motors, kayaks, backup power, and solar setups
Specifications
| Model | DJDC 12V200AH |
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Battery Energy | 2560Wh |
| Recommend Charge Current | 40A |
| Max Charge Current | 100A |
| Max Continuous Discharge Current | 200A |
| Charge Temperature Range | 0-45°C |
| Discharge Temperature Range | -20-60°C |
| Recommend Charge Voltage | 14.4V±0.2V |
| Max Charge Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.8V |
| Cell Type | LiFePO4 Prismatic A grade |
| Certification | CE / FCC / ROHS / UN38.3 / MSDS |
| Resistance | ≤10mΩ |
| Protection | BMS |
| Communication Interference | Smart Display and Bluetooth |
| Cycle Life | 6000 Cycles @ 80% |
| Terminal | M8, 9 / 16L, 5 / 16D(inch) |
| Protection Level | IP66 |
| Battery Size (LxWxH) mm | 522x240x218 |
| Battery Weight (Kg) | 20.3 |
